     1  # Coverage IDE integrations
     2
     3  ## Jetbrains IDE's
     4
     5  ### CMake (in CLion)
     6
     7  You can start coverage runs from within CLion with the help of CMake
     8  user presets. Custom cifuzz presets can be added by running:
     9
    10      cifuzz integrate cmake
    11
    12  Those presets have to be enabled before they show up as a run configuration.
    13  See the [CLion documentation on presets
    14  detection](https://www.jetbrains.com/help/clion/cmake-presets.html#detect) for
    15  more details.
    16
    17  ![CMake fuzz test in CLion](/docs/assets/coverage_clion.gif)
    18
    19  ### Bazel (in IntelliJ with Bazel Plugin)
    20
    21  To create a coverage report for your bazel project, these lines of code have
    22  to be added to your `.bazelrc` file.
    23
    24  ```
    25  # Coverage with Replay (C/C++ only)
    26  coverage --@rules_fuzzing//fuzzing:cc_engine=@rules_fuzzing//fuzzing/engines:replay
    27  coverage --@rules_fuzzing//fuzzing:cc_engine_instrumentation=none
    28  coverage --@rules_fuzzing//fuzzing:cc_engine_sanitizer=none
    29  coverage --instrument_test_targets
    30  coverage --action_env=BAZEL_USE_LLVM_NATIVE_COVERAGE=1
    31  coverage --action_env=GCOV=llvm-profdata
    32  coverage --action_env=BAZEL_LLVM_COV=llvm-cov
    33  coverage --combined_report=lcov
    34  coverage --experimental_use_llvm_covmap
    35  coverage --experimental_generate_llvm_lcov
    36  ```
    37
    38  This allows bazel to run the fuzz tests with coverage.
    39
    40  You can start a coverage run by opening the bazel BUILD file and executing the
    41  fuzz test defined with `cc_fuzz_test` with "Run ... with Coverage".
    42  This will run the fuzz test with the finding inputs from the `*_inputs` directory
    43  and produce a coverage report which can be viewed in your IDE **if the fuzz test
    44  passes**. If the fuzz test fails, the bugs must be fixed before a coverage report
    45  can be produced.
    46

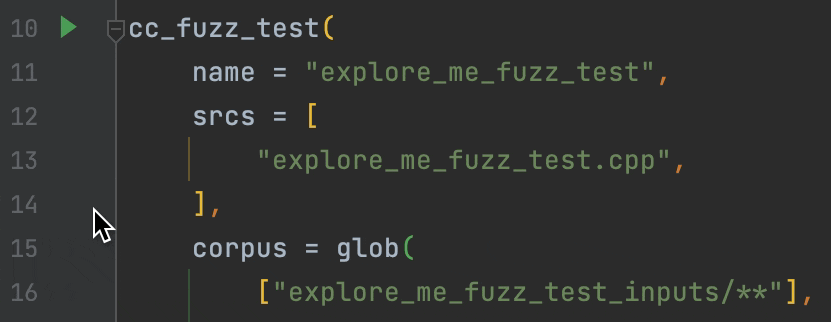

    47  ![Bazel fuzz test in IntelliJ](assets/coverage_intellij_bazel.gif)
    48
    49  ### Maven/Gradle (in IntelliJ)
    50
    51  You can start a coverage with "Run ... with Coverage". This will run the
    52  fuzz test with the finding inputs from the `*Inputs` directory in
    53  your test resources and produce a coverage report.
    54
    55  ![Jazzer fuzz test in IntelliJ](/docs/assets/coverage_intellij_jazzer.gif)
    56
    57  ### Node.js (in IntelliJ)
    58
    59  You can start a coverage with "Run ... with Coverage". This will run the
    60  fuzz test with the finding inputs from the `*.fuzz` directory next to
    61  your fuzz test file.
    62
    63  ![Jazzer.js fuzz test in IntelliJ](/docs/assets/coverage_intellij_jazzerjs.gif)
    64
    65  ## VS Code
    66
    67  ### CMake/Maven/Gradle
    68
    69  You can start coverage runs from within VS Code with the help of tasks. See
    70  [How to Integrate with External Tools via
    71  Tasks](https://code.visualstudio.com/docs/editor/tasks) for more details. A
    72  custom cifuzz coverage task can be added by running:
    73
    74      cifuzz integrate vscode
    75
    76  Coverage reports can be visualized with the
    77  [Coverage Gutters extension](https://marketplace.visualstudio.com/items?itemName=ryanluker.vscode-coverage-gutters).
    78
    79  ![CMake fuzz test in VSCode](/docs/assets/coverage_vscode.gif)
    80
    81  ### Bazel
    82
    83  Right now we do not support starting a coverage run directly from VSCode for Bazel,
    84  but you can use a created coverage report with the
    85  [Coverage Gutters extension](https://marketplace.visualstudio.com/items?itemName=ryanluker.vscode-coverage-gutters).
    86
    87  For this you have to create a coverage report with cifuzz by running:
    88
    89      cifuzz coverage --format lcov --output lcov.info <target>
    90
    91  The extension will pick up the results in the `lcov.info` file automatically
    92  and visualize it inside VSCode.
