     1  # How syzkaller works
     2
     3  Generic description of how syzkaller works are [below](internals.md#overview).
     4
     5  Linux kernel specific internals can be found [here](linux/internals.md).
     6
     7  ## Overview

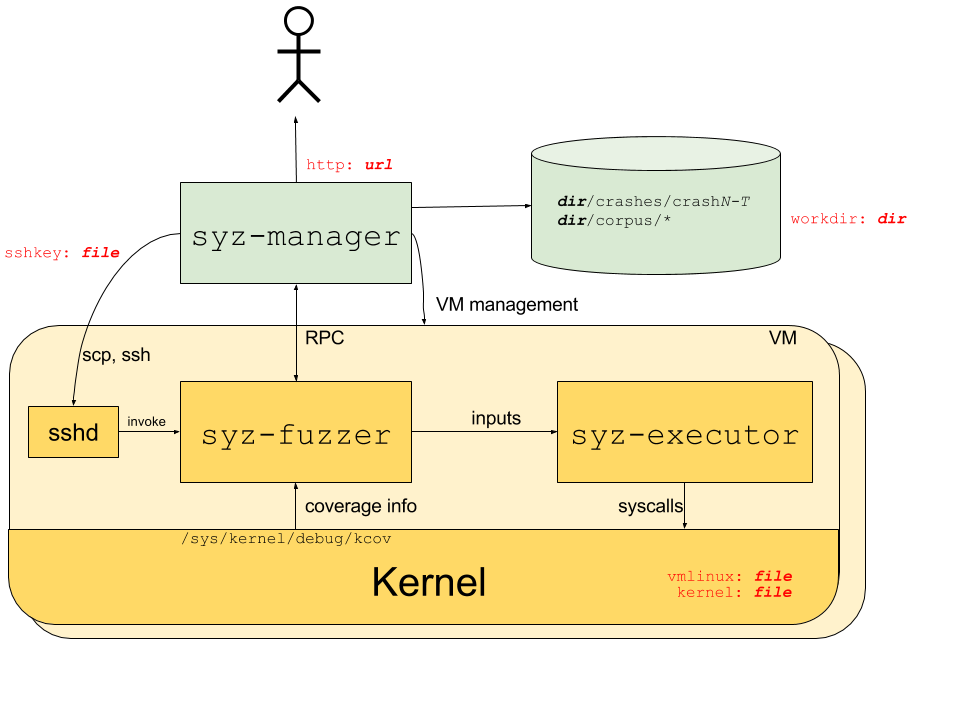

     8
     9  The process structure for the syzkaller system is shown in the following diagram;
    10  red labels indicate corresponding configuration options.
    11
    12  ![Process structure for syzkaller](process_structure.png?raw=true)
    13
    14  `syz-manager` is responsible for:
    15  * Starting/restarting/monitoring VM instances.
    16  * The actual fuzzing process (input generation, mutation, minimization, etc.).
    17  * Persistent corpus and crash storage.
    18
    19  It runs on a host with a stable kernel which does not experience white-noise fuzzer load.
    20
    21  `syz-manager` starts `syz-fuzzer` processes (one inside each VM).
    22  `syz-fuzzer`s comminucate with `syz-manager` over RPC to receive the programs
    23  that must be executed and to report back the results (error statuses, collected coverage, etc.).
    24
    25  To execute programs, `syz-fuzzer` starts transient `syz-executor` processes.
    26
    27  Each `syz-executor` process executes a single input (a sequence of syscalls).
    28  It accepts the program to execute from the `syz-fuzzer` process and sends results back.
    29  It is designed to be as simple as possible (to not interfere with fuzzing process),
    30  written in C++, compiled as static binary and uses shared memory for communication.
    31
    32  ## Syscall descriptions
    33
    34  The `syz-manager` process generates programs based on syscall descriptions described [here](syscall_descriptions.md).
    35
    36  ## Coverage
    37
    38  Syzkaller is a coverage-guided fuzzer. The details about coverage collection can be found [here](coverage.md).
    39
    40  ## Crash reports
    41
    42  When `syzkaller` finds a crasher, it saves information about it into `workdir/crashes` directory.
    43  The directory contains one subdirectory per unique crash type.
    44  Each subdirectory contains a `description` file with a unique string identifying the crash (intended for bug identification and deduplication);
    45  and up to 100 `logN` and `reportN` files, one pair per test machine crash:
    46  ```
    47   - crashes/
    48     - 6e512290efa36515a7a27e53623304d20d1c3e
    49       - description
    50       - log0
    51       - report0
    52       - log1
    53       - report1
    54       ...
    55     - 77c578906abe311d06227b9dc3bffa4c52676f
    56       - description
    57       - log0
    58       - report0
    59       ...
    60  ```
    61
    62  Descriptions are extracted using a set of [regular expressions](/pkg/report/).
    63  This set may need to be extended if you are using a different kernel architecture, or are just seeing a previously unseen kernel error messages.
    64
    65  `logN` files contain raw `syzkaller` logs and include kernel console output as well as programs executed before the crash.
    66  These logs can be fed to `syz-repro` tool for [crash location and minimization](reproducing_crashes.md),
    67  or to `syz-execprog` tool for [manual localization](executing_syzkaller_programs.md).
    68  `reportN` files contain post-processed and symbolized kernel crash reports (e.g. a KASAN report).
    69  Normally you need just 1 pair of these files (i.e. `log0` and `report0`), because they all presumably describe the same kernel bug.
    70  However, `syzkaller` saves up to 100 of them for the case when the crash is poorly reproducible, or if you just want to look at a set of crash reports to infer some similarities or differences.
    71
    72  There are 3 special types of crashes:
    73   - `no output from test machine`: the test machine produces no output whatsoever
    74   - `lost connection to test machine`: the ssh connection to the machine was unexpectedly closed
    75   - `test machine is not executing programs`: the machine looks alive, but no test programs were executed for long period of time
    76
    77  Most likely you won't see `reportN` files for these crashes (e.g. if there is no output from the test machine, there is nothing to put into report).
    78  Sometimes these crashes indicate a bug in `syzkaller` itself (especially if you see a Go panic message in the logs).
    79  However, frequently they mean a kernel lockup or something similarly bad (here are just a few examples of bugs found this way:
    80  [1](https://groups.google.com/d/msg/syzkaller/zfuHHRXL7Zg/Tc5rK8bdCAAJ),
    81  [2](https://groups.google.com/d/msg/syzkaller/kY_ml6TCm9A/wDd5fYFXBQAJ),
    82  [3](https://groups.google.com/d/msg/syzkaller/OM7CXieBCoY/etzvFPX3AQAJ)).
