     1  - Feature Name: Analytic Optimized Engine Layout
     2  - Status: In Progress
     3  - Start Date: 2021-05-10
     4  - Authors: [Xu Peng](https://github.com/XuPeng-SH)
     5  - Implementation PR: [#1348](https://github.com/matrixorigin/matrixone/pull/1348)
     6  - Issue for this RFC: [#1320](https://github.com/matrixorigin/matrixone/pull/1320)
     7
     8  # Summary
     9  This is a proposal to define the data persistent layout.
    10
    11  # Motivation
    12  **AOE** (Analytic Optimized Engine) is designed for analytical query workloads.
    13  - In practice, a columnar store is well-suited for OLAP-like worloads.
    14  - Dynamic index creation and deletion
    15  - In order to keep down the cost of queries, avoid too many sort runs
    16  - High compression rate
    17
    18  # Detailed Design
    19  ## Data Hierachy
    20  ![image](https://user-images.githubusercontent.com/39627130/145529173-1c6ad8eb-84e2-4d7e-a49a-9085153f3436.png)
    21
    22  As described [Here](https://github.com/matrixorigin/matrixone/blob/main/docs/rfcs/20211210_aoe_overall_design.md#data-storage). Each table data is a three-level LSM tree. For example, the maximum number of blocks in a segment is 4. Segment [0,1,2] are already merge sorted, respectively corresponding to a sort run in **L2**. Segment [3] is not merge sorted, but Block [12,13] have been sorted, respectively corresponding to a sort run in **L1**. Transient block 14 has reached the maximum row count of a block and is flowing to **L1**. Transient block 15 is the latest appendable block.
    23  ![image](https://user-images.githubusercontent.com/39627130/145538157-1cd4bd28-d9a3-42fc-8879-f7b4e19c96da.png)
    24
    25  ## File Format
    26  ![image](https://user-images.githubusercontent.com/39627130/145574992-9240f59a-2713-4aa5-93d7-07d2b9fc1ed4.png)
    27  - Zones
    28    1) Header
    29    2) Footer
    30    3) MetaInfo
    31    4) Columns
    32    5) Indexes
    33  - Indexes that specified in **CREATE TABLE** statement will be embedded in the segment file. Otherwise, there is a dedicate index file for the specified index.
    34  - Zonemap index is automatically created for all columns and embedded in the segment file.
    35  - In a segment or block file, the data of each column is stored in a continuous space.
    36  - Column block
    37    1) Fixed-length type column block format (Uncompressed)
    38       ![image](https://user-images.githubusercontent.com/39627130/145585444-692d7c2c-e884-4a2d-a1ca-59ce9da0230b.png)

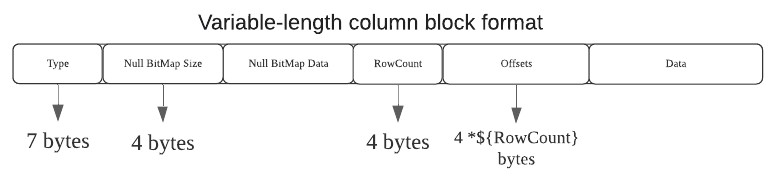

    39    2) Variable-length type column block format (Uncompressed)
    40       ![image](https://user-images.githubusercontent.com/39627130/145585482-b58c2baf-adec-4cee-b03c-faadefbbce54.png)
    41
    42  ## Compression
    43  The compression unit is always a column block. The compression algo, compressed and uncompressed size are all serialized into **MetaInfo** zone.
    44
    45  # Future Work
    46  1. Per-column compress codec
    47  2. Data deletion
