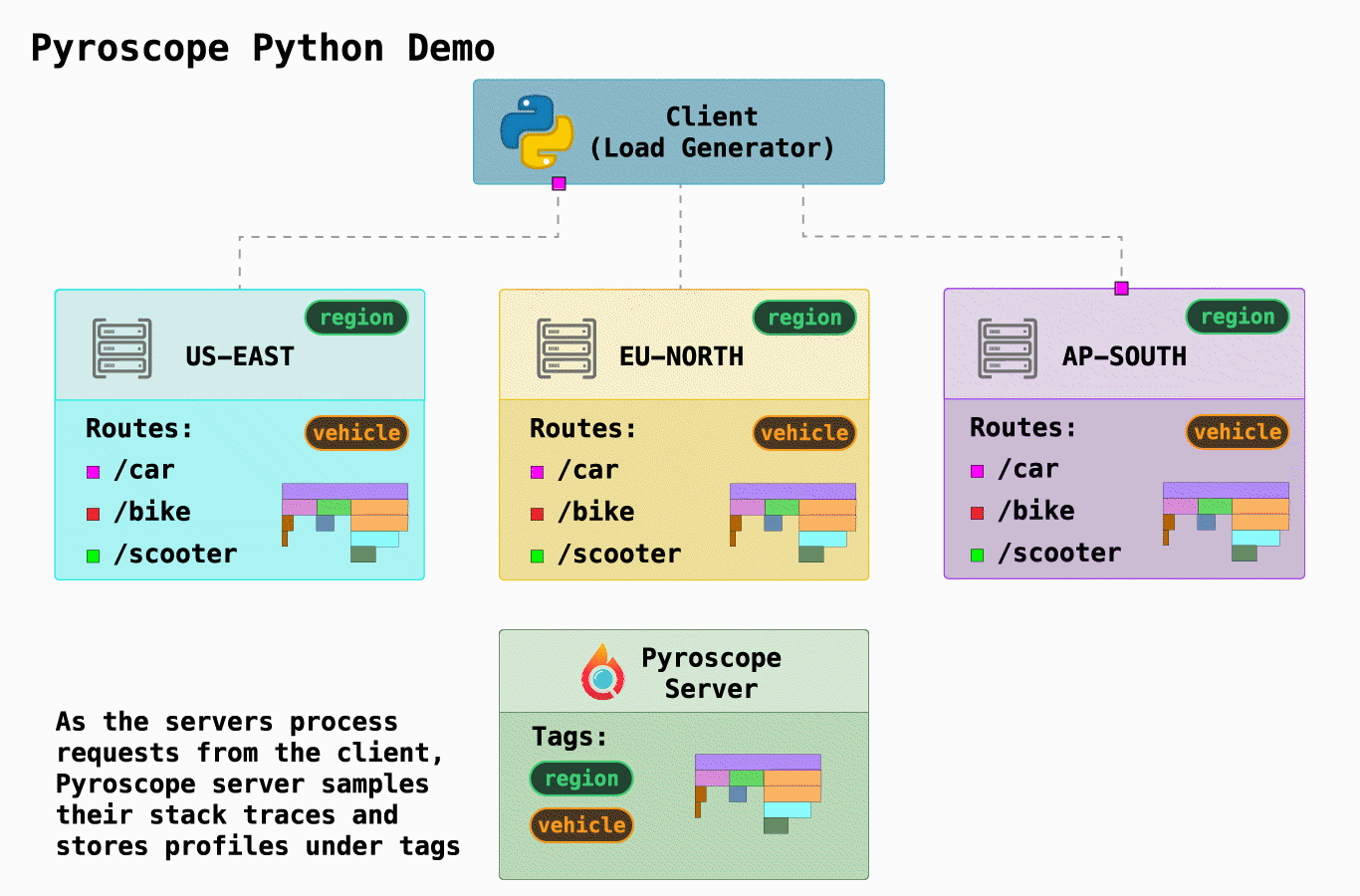

github.com/pyroscope-io/pyroscope@v0.37.3-0.20230725203016-5f6947968bd0/examples/python/rideshare/README.md (about) 1 ## Continuous Profiling for Python applications 2 3 ### Profiling a Python Rideshare App with Pyroscope 4 5  6 7 #### _Read this in other languages._ 8 9 <kbd>[简体中文](README_zh.md)</kbd> 10 11 Note: For documentation on the Pyroscope pip package visit [our website](https://pyroscope.io/docs/python/) 12 13 ## Background 14 15 In this example we show a simplified, basic use case of Pyroscope. We simulate a "ride share" company which has three endpoints found in `server.py`: 16 17 - `/bike` : calls the `order_bike(search_radius)` function to order a bike 18 - `/car` : calls the `order_car(search_radius)` function to order a car 19 - `/scooter` : calls the `order_scooter(search_radius)` function to order a scooter 20 21 We also simulate running 3 distinct servers in 3 different regions (via [docker-compose.yml](https://github.com/pyroscope-io/pyroscope/blob/main/examples/python/docker-compose.yml)) 22 23 - us-east 24 - eu-north 25 - ap-south 26 27 One of the most useful capabilities of Pyroscope is the ability to tag your data in a way that is meaningful to you. In this case, we have two natural divisions, and so we "tag" our data to represent those: 28 29 - `region`: statically tags the region of the server running the code 30 - `vehicle`: dynamically tags the endpoint (similar to how one might tag a controller rails) 31 32 ## Tagging static region 33 34 Tagging something static, like the `region`, can be done in the initialization code in the `config.tags` variable: 35 36 ```python 37 pyroscope.configure( 38 application_name = "ride-sharing-app", 39 server_address = "http://pyroscope:4040", 40 tags = { 41 "region": f'{os.getenv("REGION")}', # Tags the region based off the environment variable 42 } 43 ) 44 ``` 45 46 ## Tagging dynamically within functions 47 48 Tagging something more dynamically, like we do for the `vehicle` tag can be done inside our utility `find_nearest_vehicle()` function using a `with pyroscope.tag_wrapper()` block 49 50 ```python 51 def find_nearest_vehicle(n, vehicle): 52 with pyroscope.tag_wrapper({ "vehicle": vehicle}): 53 i = 0 54 start_time = time.time() 55 while time.time() - start_time < n: 56 i += 1 57 ``` 58 59 What this block does, is: 60 61 1. Add the tag `{ "vehicle" => "car" }` 62 2. execute the `find_nearest_vehicle()` function 63 3. Before the block ends it will (behind the scenes) remove the `{ "vehicle" => "car" }` from the application since that block is complete 64 65 ## Resulting flamegraph / performance results from the example 66 67 ### Running the example 68 69 To run the example run the following commands: 70 71 ```shell 72 # Pull latest pyroscope image: 73 docker pull pyroscope/pyroscope:latest 74 75 # Run the example project: 76 docker-compose up --build 77 78 # Reset the database (if needed): 79 # docker-compose down 80 ``` 81 82 What this example will do is run all the code mentioned above and also send some mock-load to the 3 servers as well as their respective 3 endpoints. If you select our application: `ride-sharing-app.cpu` from the dropdown, you should see a flamegraph that looks like this (below). After we give 20-30 seconds for the flamegraph to update and then click the refresh button we see our 3 functions at the bottom of the flamegraph taking CPU resources _proportional to the size_ of their respective `search_radius` parameters. 83 84 ## Where's the performance bottleneck? 85 86 Profiling is most effective for applications that contain tags. The first step when analyzing performance from your application, is to use the Tag Explorer page in order to determine if any tags are consuming more resources than others. 87 88  89 90  91 92 The benefit of using Pyroscope, is that by tagging both `region` and `vehicle` and looking at the Tag Explorer page we can hypothesize: 93 94 - Something is wrong with the `/car` endpoint code where `car` vehicle tag is consuming **68% of CPU** 95 - Something is wrong with one of our regions where `eu-north` region tag is consuming **54% of CPU** 96 97 From the flamegraph we can see that for the `eu-north` tag the biggest performance impact comes from the `find_nearest_vehicle()` function which consumes close to **68% of cpu**. To analyze this we can go directly to the comparison page using the comparison dropdown. 98 99 ## Comparing two time periods 100 101 Using Pyroscope's "comparison view" we can actually select two different queries and compare the resulting flamegraphs: 102 - Left flamegraph: `{ region != "eu-north", ... }` 103 - Right flamegraph: `{ region = "eu-north", ... }` 104 105 When we select a period of low-cpu utilization and a period of high-cpu utilization we can see that there is clearly different behavior in the `find_nearest_vehicle()` function where it takes: 106 - Left flamegraph: **22% of CPU** when `{ region != "eu-north", ... }` 107 - right flamgraph: **82% of CPU** when `{ region = "eu-north", ... }` 108 109  110 111 ## Visualizing Diff Between Two Flamegraphs 112 113 While the difference _in this case_ is stark enough to see in the comparison view, sometimes the diff between the two flamegraphs is better visualized with them overlayed over each other. Without changing any parameters, we can simply select the diff view tab and see the difference represented in a color-coded diff flamegraph. 114  115 116 117 ### More use cases 118 119 We have been beta testing this feature with several different companies and some of the ways that we've seen companies tag their performance data: 120 - Linking profiles with trace data 121 - Tagging controllers 122 - Tagging regions 123 - Tagging jobs from a redis / sidekiq / rabbitmq queue 124 - Tagging commits 125 - Tagging staging / production environments 126 - Tagging different parts of their testing suites 127 - Etc... 128 129 ### Live Demo 130 131 Feel free to check out the [live demo](https://demo.pyroscope.io/explore?query=rideshare-app-python.cpu%7B%7D&groupBy=region&groupByValue=All) of this example on our demo page. 132 133 ### Future Roadmap 134 135 We would love for you to try out this example and see what ways you can adapt this to your python application. Continuous profiling has become an increasingly popular tool for the monitoring and debugging of performance issues (arguably the fourth pillar of observability). 136 137 We'd love to continue to improve this pip package by adding things like integrations with popular tools, memory profiling, etc. and we would love to hear what features _you would like to see_.
