     1  # lakectl Testing
     2
     3  ## Purpose
     4
     5  This document describes the design of a testing framework aimed at testing our CLI, namely `lakectl`.
     6  It specifies the requirements from the system and a set of technical questions we need to answer. Each question (in fact, each option), is accompanied by pros and cons, to help us understand which options will answer our needs the best. These are obviously not the only aspects to these decisions, and so, this document and the decisions derived from, are subject to reviews and suggestions.
     7  This document does not specify the cli tests to run, but the system intended to run them
     8
     9  ## Requirements
    10  * Usable both locally and as part of CI/CD
    11  * Ease of use - adding new tests should be as easy as possible. Moreover, adding new tests, or modifying existing ones, should not draw modifications to the testing framework itself
    12    * It is obvious that changing the test **format** (e.g. expanding) will require framework modifications, in order to support the modified format
    13  * Decoupling of Framework and Data - the test data format should contain all the required info for the test itself, regardless of the framework design. In other words, we would like the ability to rewrite/replace the framework and still use the same tests data
    14  *
    15
    16  ## What We Want To Test
    17
    18  The goal is to the test `lakectl` correctness. At the very least we would like to verify that:
    19  * CLI input is parsed correctly
    20  * The correct requests are sent to the server (if any)
    21  * Server result is formatted correctly
    22  * Both erroneous input and error results from the server are formatted correctly
    23  * CLI Internal errors are handled correctly
    24
    25  This testing framework is not designed to perform end-to-end tests (i.e. server correctness) or performance, for that matter
    26
    27  ## Architecture
    28
    29  ### Architecture Outline
    30

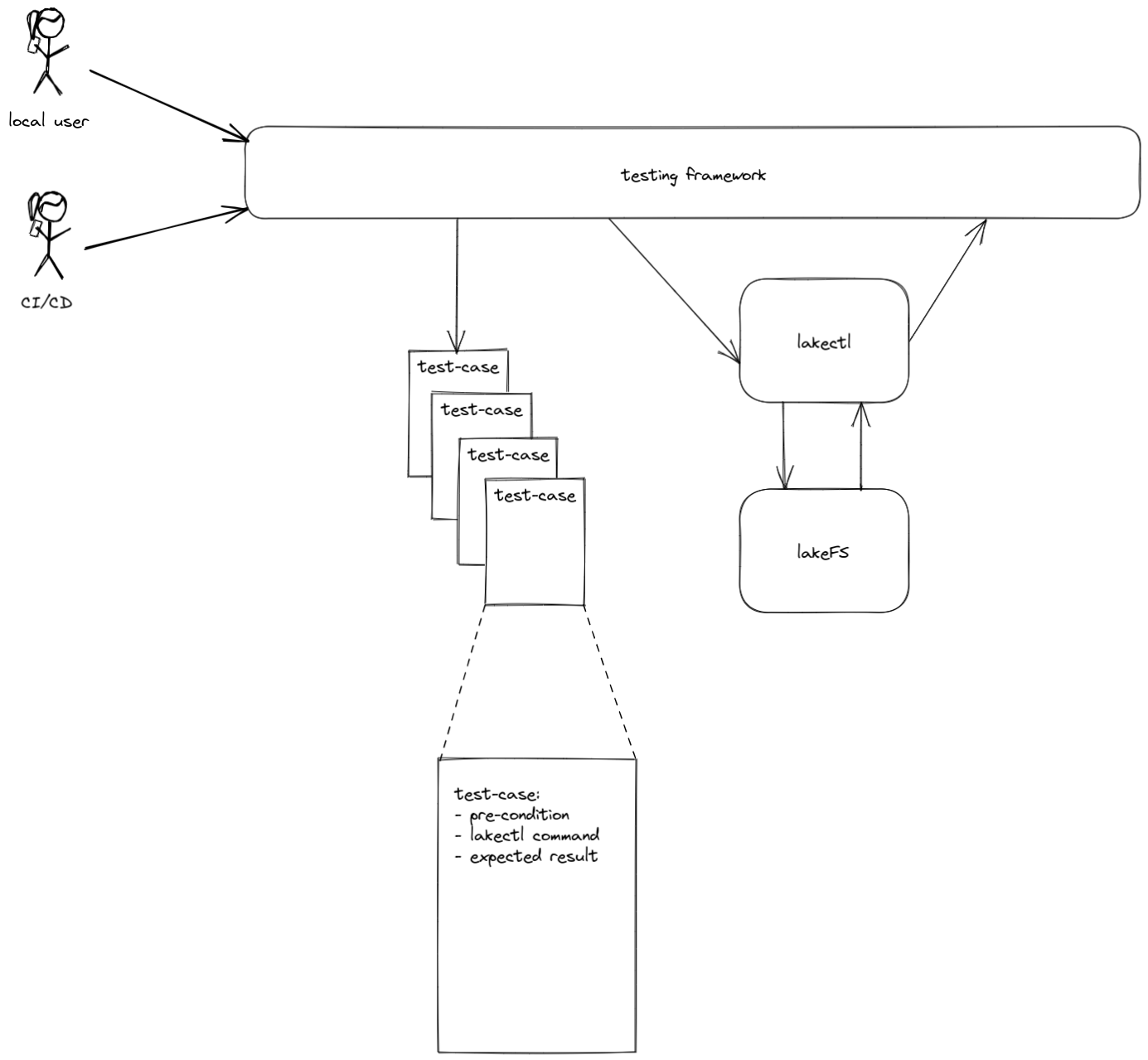

    31  ![lakectl testing architecture](./diagrams/lakectl-testing-arch.png)
    32
    33  ### Test Case Structure
    34
    35  The test case structure should contain at least the following details:
    36  * pre-condition: the system state right before the tested command starts. This can be a function name to call, a mock type to use or a file containing lakectl commands to run in order to bring the system to that state (in case real server is in use)
    37  * lakectl command: a string with the `lakectl` command to test.
    38  * expected result: the expected output of a correct execution of the above command. This can be a string or, better, a file containing the output string
    39
    40  In the future we might consider expending this structure with more fields, to allow extended functionality
    41
    42  ### How should we use `lakefs` backend
    43
    44  Here are some of the pros and cons of each approach
    45
    46  #### **Live Server**
    47
    48  On the upside:
    49  * Straightforward - the implementation is already there, just bring the server up.
    50    * Moreover, `lakefs` modifications are immediately reflected into the tests
    51  * The best possible simulation - this is the real server `lakectl` is communicating with
    52
    53  And then, on the downside:
    54  * Bringing up the server requires additional dependencies - underlying storage, DB etc. While this supports the advantage of testing a **real** server environment, it complicates the test setup, and although this is easily solved by containers, it still worth mentioning
    55  * Performance-wise, creating a server environment for each test (thousands of them, ideally) is very expensive. We can, of course, group several tests (all of them?) to use a single server session, but this will eliminate the isolative and stateless nature of the tests, which is undesired
    56  * Flexibility is limited to `lakefs` server implementation. This means that testing `lakectl` behavior, with improbable response from `lakefs` server (e.g. timeout, disconnection etc.) becomes very difficult
    57
    58  #### Mock
    59
    60  Advantages:
    61  * Totally independent from the environment. No need for DB, underlying storage, or any other future dependency that may be added to `lakefs` server. Moreover, future removal of any dependency from `lakefs` (Postgres?!) will not require framework modification. And, once again, although this advantage is pretty much diminished by the usage of containers, it is still worth noting
    62  * No uptime, as the mock is a part of the test itself
    63  * Totally stateless - again, as the mock is part of each test
    64  * Maximal flexibility - each desired server response can be easily hard-coded
    65  * No need for initial state setup steps
    66  * Server bugs are not included
    67
    68  Disadvantages:
    69  * Requires implementation - unlike `lakefs` server, we currently don't have a mock
    70  * Requires (a lot of) maintenance - every new feature and every bug fix in `lakefs` may, and probably will, need to be reflected in the mock
    71  * Does not test the client with the actual server.  E.g. if the client expects a particular response but the server sends a different response, the test passes but client behaviour will be different.
    72
    73  #### Conclusion ?
    74
    75  For the long term it look like the better approach is to use a full scale mock, which should evolve as tests are created. While this will certainly have an impact on new tests creation ease, the benefits of lack independency on `lakefs` are too important to ignore, especially when dealing with a young product such as `lakefs` which may be subdued to significant changes in the future
    76
    77  ### How should we test `lakectl`
    78
    79  While the decision on `lakefs` usage above, has many significant aspects, the 2 approaches on how to test `lakectl` - as a binary or as code - seems to have much lesser impact. Here are some of the advantages and disadvantages of both
    80
    81  #### Testing `lakectl` Binary
    82
    83  Pros:
    84  * Tests are performed on the real binary and includes all the surroundings, such as env variables
    85  * Allows usage of 3rd party testing tools, that were designed to test CLIs
    86
    87  Cons:
    88  * May be hard to debug a failed test
    89
    90  #### Testing `lakectl` Code with Golang Tests
    91
    92  Pros:
    93  * As simple as it gets - use golang testing framework on function `main()`
    94  * No need to build `lakectl` binary as part of the test
    95  * Easy to debug - just use your favorite IDE/debugger
    96
    97  Cons:
    98  * Everything that happens before `main()` is lost (process start etc.)
    99  * Might be challenging to create the same env as the process
   100
   101  #### Conclusion ?
   102
   103  As it seems, the 2 approaches are pretty similar, so no clear cut here. I believe that the simplicity that comes with testing `lakectl` code with golang, will make our life easier and although it will not test the real binary, the benefits are non negligible
   104
   105  ## Conclusion
   106
   107  At the design review meeting we came to the following understandings:
   108  * lakectl tests will be implemented as part of Esti system tests
   109  * lakectl will be tested only as a binary
   110    * lakectl binary location will be passed as env variable
   111  * By default, real lakefs server will be used, for everything currently possible with lakefs. Mocks will (probably) be used at a later phase, to test behaviors that are difficult to achieve in a real server environment
   112  * Good flows are the first ones to be covered, then bad flows/common error scenarios. Specific errors reported by users will be covered as needed
