github.com/voedger/voedger@v0.0.0-20240520144910-273e84102129/design/orchestration/10-review-existing-2-nomad.md (about)

     1
     2  ### Nomad.Job
     3
     4  https://www.nomadproject.io/docs/job-specification
     5
     6  ```mermaid
     7  erDiagram
     8    Job ||..|{ Group : "has"
     9    Group ||..|{ Task : "has"
    10    Group |{..|| Host : "tasks are placed on the same"
    11
    12    Group{
    13      count int "the number of these tasks we want"
    14    }
    15
    16    Task{
    17      driver string  "docker, exec, java"
    18      config map "driver-specific, image = 'hashicorp/web-frontend'"
    19      env map "DB_HOST = 'db01.example.com'"
    20      resources map "cpu  = 500 #MHz, memory = 1024 #MB"
    21    }
    22  ```
    23
    24  ### Nomad.Scheduling
    25
    26  https://www.nomadproject.io/docs/internals/scheduling/scheduling
    27
    28  - There are four primary "nouns" in Nomad; jobs, nodes, allocations, and evaluations.
    29  - **Jobs** are submitted by users and represent a desired state
    30    - A job is a declarative description of tasks to run which are bounded by constraints and require resources
    31    - Tasks can be scheduled on nodes in the cluster running the Nomad client
    32  - The mapping of tasks in a job to clients is done using **allocations**
    33    - An allocation is used to declare that a set of tasks in a job should be run on a particular node. Scheduling is the process of determining the appropriate allocations and is done as part of an evaluation.
    34  - An **evaluation** is created any time the external state, either desired or emergent, changes
    35    - The desired state is based on jobs, meaning the desired state changes if a new job is submitted, an existing job is updated, or a job is deregistered
    36    - The emergent state is based on the client nodes, and so we must handle the failure of any clients in the system.
    37    - These events trigger the creation of a new evaluation, as Nomad must evaluate the state of the world and reconcile it with the desired state.
    38
    39

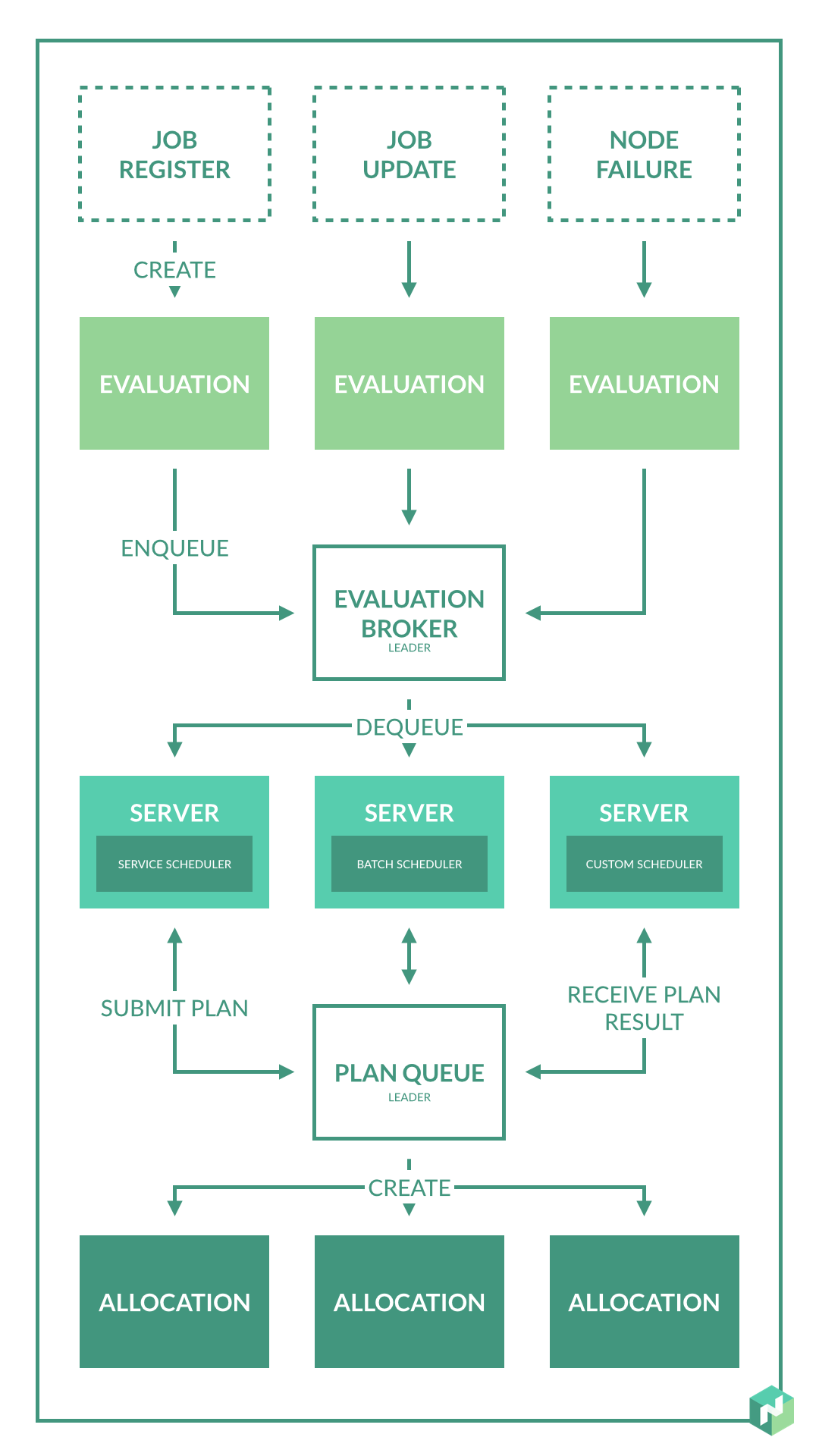

    40  Process:
    41  ![](img/nomad.png)
    42
    43
    44  ### Nomad.Schedulers
    45
    46  > Nomad ships with a service scheduler that optimizes for long-lived services, a batch scheduler that is used for fast placement of batch jobs, system and sysbatch schedulers that are used to run jobs on every node, and a core scheduler which is used for internal maintenance.
    47
    48
    49  ### Concurrency Races
    50
    51  > Multiple schedulers are running in parallel without locking or reservations, making Nomad optimistically concurrent. As a result, schedulers might overlap work on the same node and cause resource over-subscription. The plan queue allows the leader node to protect against this and do partial or complete rejections of a plan.
    52
