     1  # MinSuccess
     2
     3  ## Motivation
     4
     5  Sometimes we want to deploy our job with some service tasks (nginx, redis and so on) which will always be in `Running`
     6  state. So how to determine such kind job is completed? Only with `minAvailable` is not enough, because
     7  `minAvailable` only work at **Job pending** and **all tasks Completed/Failed**. It lacks the ability to change the Job
     8  state during the **Job is Running** state, and reclaim these service tasks.
     9

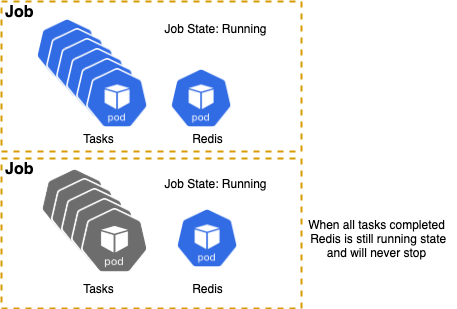

    10  ![](images/min-success-1.png)
    11
    12  ## Design
    13  In order to solve this problem, we provide `minSuccess` field which will help the job to determine how many succeed
    14  tasks does it need to change its state to `Completed`, and reclaim the other Running pods.
    15
    16  ```yaml
    17  apiVersion: batch.volcano.sh/v1alpha1
    18  kind: Job
    19  metadata:
    20    name: test-job
    21  spec:
    22    minAvailable: 6
    23    minSuccess: 5
    24    schedulerName: volcano
    25    queue: default
    26    plugins:
    27      svc: []
    28    tasks:
    29      - replicas: 5
    30        name: "task"
    31        template:
    32          metadata:
    33            name: task
    34          spec:
    35            containers:
    36              - image: ubuntu
    37                imagePullPolicy: IfNotPresent
    38                name: task
    39                resources:
    40                  requests:
    41                    cpu: "1"
    42            restartPolicy: OnFailure
    43      - replicas: 1
    44        name: "redis"
    45        template:
    46          metadata:
    47            name: redis
    48          spec:
    49            containers:
    50              - image: redis
    51                imagePullPolicy: IfNotPresent
    52                name: redis
    53            restartPolicy: OnFailure
    54  ```
    55

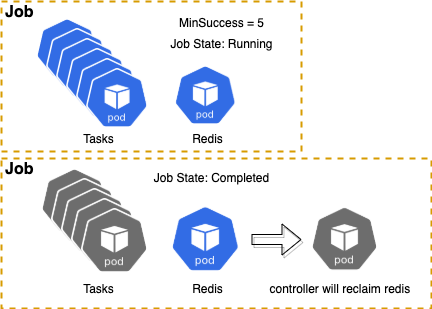

    56  ![](images/min-success-2.png)
    57
    58  From the above picture, we can find that when there are 5 tasks completed, the controller will know it's the time to mark the job `Completed`, and reclaim the redis pod.
